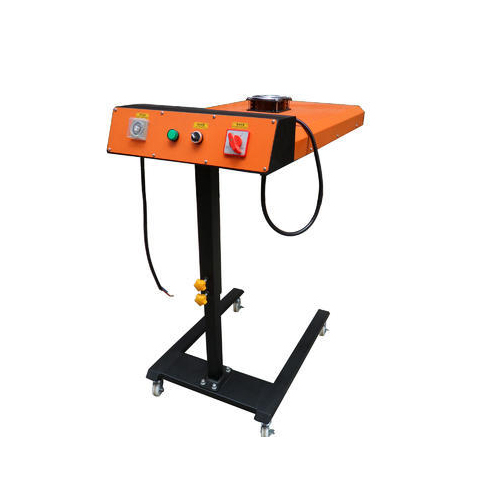

Flash Cure Dryers
We are leading manufacturer and exporter of
Flash Cure Dryers and our product is made up of good quality.
Flash Cure Dryers offered are
equipped with digital temperature controller, hot air blowers as well as
lamp reflector modules which ensure longer working life as well as high
process efficiency standards.
Also known as spot cure units, these precision
designed infra red dryers function by drying off the top layer of ink using
infra red heat source.
These dryers are an important part of
Print-Flash-Print Technique where these are used for achieving bright,
opaque as well as multi-colored images on dark colored apparels.
Further,
the technique is also used while printing non-porous textiles like printing
nylon jackets. Here, our expertise also lies in custom tuning these as per
the specifications required by the customers.
Product Details :
Reflector | lamp reflector |
Brand | Kerone |
Automatic Grade | Semi-Automatic |
Design | Customized |

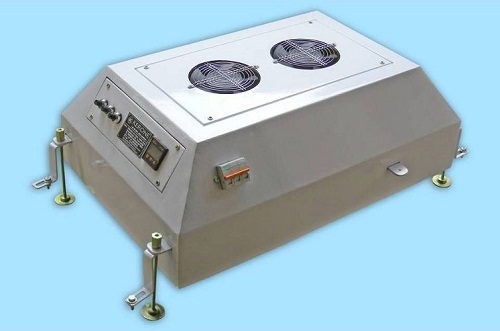

IR Flash Cure
IR Flash Cure solutions offered find
application in Textile and Garment Printing industry and are developed in
line with international quality standards so as to deliver optimum
performance and durability standards. Featuring operator friendly control
panel operated through battery, these come with height adjustment for making
heating panel parallel to the pallet, timer/controller option, remote start
pulse and cooling fans for generating high volume/pressure. Apart from this,
other standard features include presence of auto/manual switches, control
panel on battery, nylon caster wheels, distance between pallet to floor
lever of approximately 35" in height and all wiring, ducks done on
system to deliver flawless usage value for long service life periods.
Features:
- Height adjustment for heating panel should be parallel to the pallet
- Timer, controller
- Remote start pulse
- Cooling fans with high volume, pressure
- Auto, manual switches
- Control panel on battery
- caster wheels (brake wheels 2 No) nylon wheels
- Distance between pallet to floor lever app. Height 35"
- Height variation up to 250 mm from pallet
- All wiring, ducks on the portable system would be nicely done
IR Curing Unit
IR Curing Unit offered is designed in
compliance with international quality standards and for safety applications
comes integrated with IR curing unit and conveyor speed with each other.
Here, the presence of Teflon coated, antistatic (PTFE) belt is also designed
to deliver longer service life. Some of the standard features of the system
include conveyor speed & UV system integrated with each other for safety
purposes, Conveyor driven using AC motor with variable frequency drive so as
to achieve fine speed setting, use of imported gear box, use of rubber
lining rollers for belt, use of parabolic reflectors for uniform heat
distribution as well as presence of multi-position stand with locking
casters for mobility purposes. Some significant advantages include low noise
levels, allowing immediate handling of cured parts after treatment for
further processes, reduction of possible print damage because of quick ink
drying and providing instant maximum cure output.
Features:
- Conveyor speed & UV system are integrated with each other for
safety purpose.
- Conveyor driven by AC motor with variable frequency drive for fine
speed setting
- Imported gear box
- Teflon coated, antistatic (PTFE) Belt
- Rubber lining rollers for belt

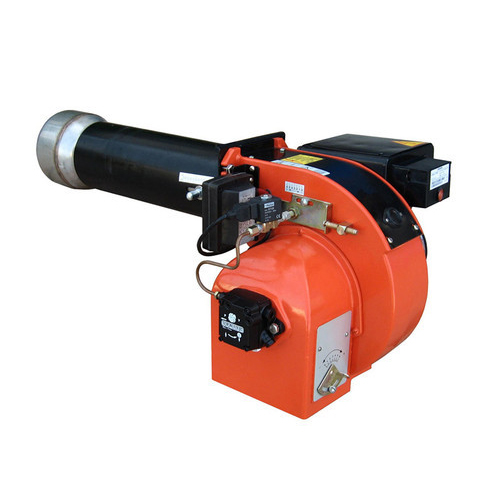

Industrial Gas Burner
Industrial Gas Burner offered is
designed to deliver fully automatic operations where by simply turning on
switch leads to burner being in operational stage as the intelligent burner
controller performs all check tasks related to flame detection, blower on
and others. Further, these also come with on-off control that can be
attached with automatic temperature controller/thermostat. Further, the
specially developed Hi-Lo system also allows for optional precise control
over set point that can be hooked up with optional heat gen DTC 302
temperature controller that is supplied as per requirements of customer.
Further, the compact designs of these industrial gas burners also allow easy
adaptability to most heating applications. Here, the burner and control
panel also come fitted separately so as to avoid probable damage possibility
to control section, ignition transformer and other system components due to
back heat.
Curing Systems
Our organization provides a qualitative range of Curing Machine to our clients as per their specification. These machines are available under model no: PH 2001 that consists of a non stick teflon conveyor belt with all types of inks and discharge.

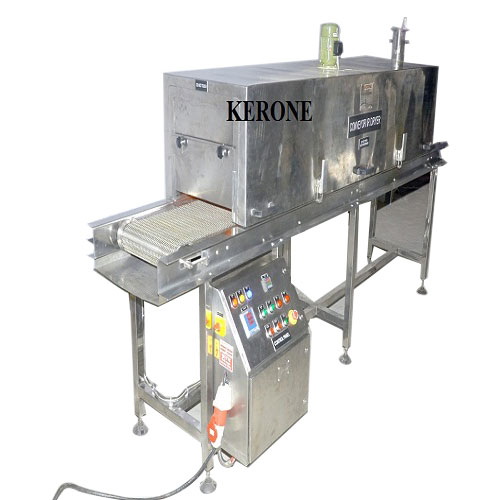

Infrared Dryers
Infrared Dryers utilizes the high end infrared radiators as main source of heating, due this utilization of infrared for heating help the dryer to provide various advantages such as high efficiency, low response time, evenly heating the surface of material, lower energy consumption, Green technology and compact in size.
KERONE has been leader in designing, manufacturing, installation and commissioning of various ranges of IR dryers and various applications for many national and international projects. The Infrared dryers (IR Dryers) are designed and customized to fit into need of your process need for drying requirement
Since the Infrared dryer (IR dryer) produces the desired heat on the surface of material hence it the rate of drying is very fast.
Features:
- Infrared dryers are having superior Air Handling arrangement.
- Forced airflow speed up drying/curing process.
- High-volume circulation blower reduces energy costs.
- Separate dedicated blowers for circulation & exhaust Control Center
- After the dryer has been turned off, the blowers and belt will continue to run for five minutes to shut down automatically after cooling of heat chamber.
- Infrared dryers (IR dryers) are compact in size, hence it takes lesser floor area.
- Infrared Dryers (IR dryers) are having digital keypad with digital display.
- Air-cooled electrical control cabinet insures long life of electrical components Conveyor System.
- Conveyor belt is made of imported antistatic heat-resistant, Teflon-coated fiberglass coating.
- Conveyor Driven by a reliable, heavy-duty, variable-speed AC motor with imported variable speed drive and gear box.
- Degradation of solvents by oxidation
- Rubber lining rollers for belt
- Minimum belt speed: 0.8 mtr per minute
- Max belt Speed : 15 Mtr/ Min.
- Conveyor speed & IR system are integrated with each other for safety purpose.
