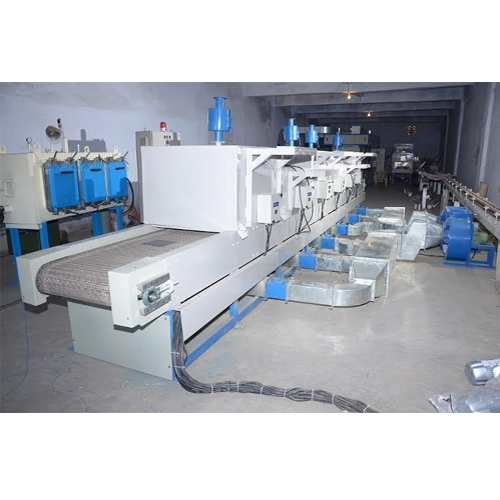

Flat Belt Conveyorised Oven

Flat Belt Conveyorised Oven offered comprise electrically heated conveyor ovens that consist of different zones where same temperature can be provided in zones along path of belts. Here, control panels are provided on each zone as well as a common control panel is also provided as per client's specific requirements. Other than this, fans/blowers are incorporated in each zone for meeting the demands of air circulation and uniform temperature. With these ovens coming with precision tuned components including rollers, flat-wire, flex wire, parallel chains, Tef-glass mesh or solid belting, these are developed to ensure precision movement of the products through infrared oven. Further, the use of tubular steel frames also adds to its rugged construction, thus delivering longer service life standards.

Features:

• Control panels are provide on each zone and also a common control panel can be provided as per the client's requirement
• Fans/blowers are incorporated in each zone for air circulation and uniform temperature
• Products are places on the belt on loading side of the oven & unloaded
  from the other side

Specifications :

• Air-Flow Direction : Vertical Down, Horizontal, Duel
• Capacity : 0-100Kg upto >3000Kg
• Display : Digital

Flat Belt Ovens offered are designed to deliver economical functionality and can be specifically tuned to match up to your applications. Here, our expertise lies in utilizing rollers, parallel chains, Tef-glass mesh, flatwire, flex wire or solid belting for achieving precision movement of products through infrared oven. Further, the rugged construction of these conveyorized ovens including use of tubular steel frames also make these deliver optimum service life standards. Here, our team ensures that the design standards maintained are kept simple in terms of installation, maintenance and operations with most insulated oven chambers featuring use of hinged/removable doors along sides so as to allow full access. For easier heater positioning, heaters can be mounted to adjustable supports that also allow users to direct infrared energy where required so as to achieve greater efficiency.

Specifications :

• Type : Belt Conveyor Oven
• Capacity : 0-100Kg, 100-500 Kg, 500-1000 Kg,
  1000-2000 Kg, 2000-3000 Kg
• Material : Steel

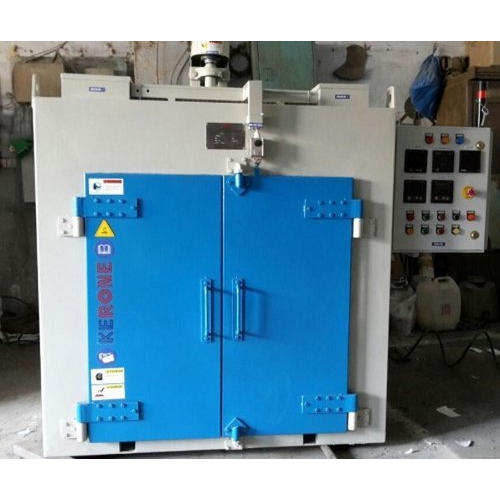

Batch Ovens offered comprise energy efficient custom infrared ovens that find application for stationary batch processes including in end applications like glue activating, drying, mould pre-heating, fusing, annealing and curing processes. With product temperatures of 150 degrees F to 600 degrees F being common for Infrared Batch Ovens, higher temperatures can also be achieved here. Further, the system can also be provided with reliable custom control panel, optional timers, precise solid state controllers, and sensors as needed. With all batch ovens factory assembled, set up and tested prior to shipment, here, we can also offer custom carts or racks to transfer/hold your products.

Specifications :

• Temperature : 150 degrees F to 600 degrees F
• Surface : Powder coated
• Material : Stainless Steel

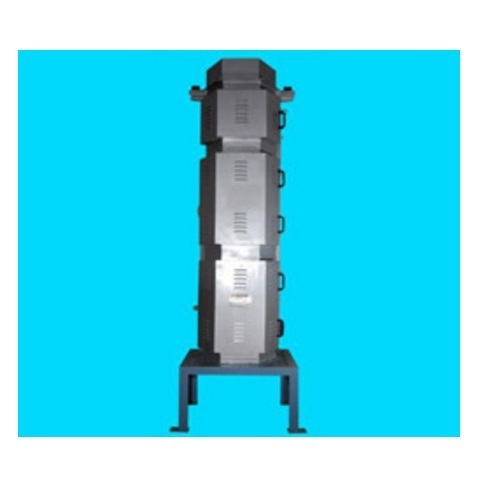

Web Dryer/Sheet Oven solutions offered comprises energy efficient electric IR heating equipment that finds application in continuous sheet/web processing. Some applications where these can be used in include adhesives & coatings, drying ink, preheating for embossing/thermoforming, curing/fusing vinyl, silicone & neoprene; post heating, converting & heat-setting textiles; sintering Teflon as well as in fiber reinforced polymers. Backed by our rich experience in the industry as well as service support of experienced team of professionals, we hold expertise in reviewing your heating process and based on the analysis provide customers with a clean and efficient solution to help them achieve optimum process efficiency as well as save operational costs.

Specifications :

• Voltage : 415 V
• Drying Temp(c) : 35 -80 celcius
• Material : Stainless Steel
• Phase : 3
• Power source type : AC
