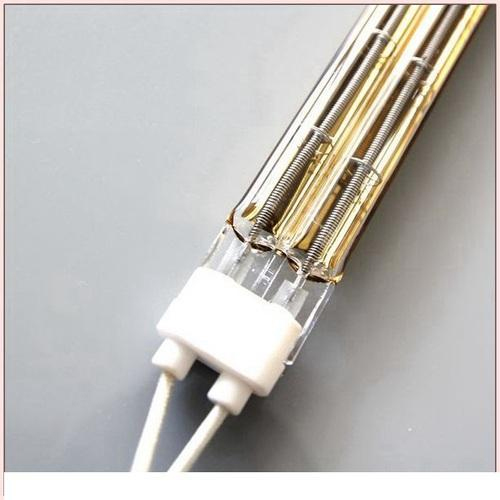

Fast Medium Wave Infrared Heaters
Fast Medium Wave Infrared Heater feature use of filament tungsten wires with twin tubes filled with halogen gas. The round ceramic base (one or both ends) comprises lead wire of 500 mm size and is also configured with lead and insulated wires.
Technical Specifications:
Transparent quartz glass tube of outer diameter 11x23mm
Filament temperature : 600KW
Wave length : 1.5mm to 2.0mm
Specifications :
- Filament temperature : 600 KW
- Outer diameter : 11 x 23 mm
- Wavelength : 1.5mm to 2.0mm

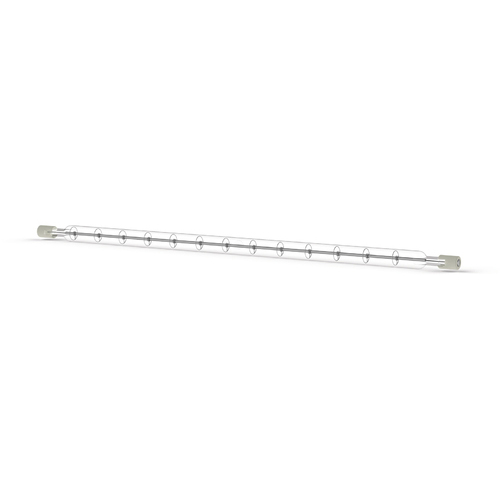

Short Wave Infrared Heaters
Short Wave Infrared heaters suites for specific applications involving vacuum technology and dust free/clean room conditions. These assist in transmitting heat in form of electromagnetic waves having velocity of 3, 00,000 Km/sec at speed of light.
Advantage : Eliminating heat loss arising out of convection
Available lengths : 5" to 30"
Applications:
- PET performs heating in stretch blow moulding machines
- Printing ink drying in offset machines
- Paper coating drying
- Pre-heating before embossing
- Screen printing curing on T-shirts
- Textiles and various such applications
Specifications :
- Electromagnetic velocity : 3, 00,000 Km/sec

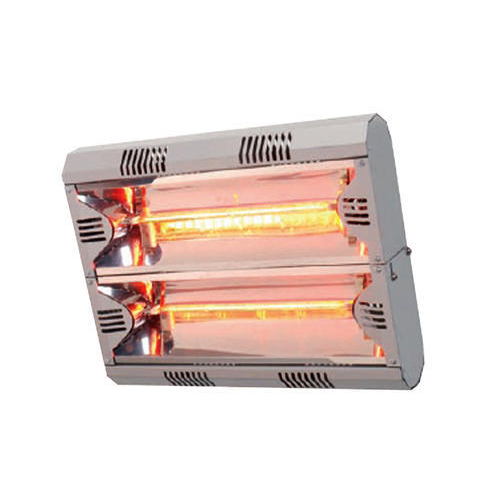

Short Wave Infrared Module
Short Wave Infrared Module heaters are designed for applications involving infrared technology. As complete infrared systems, these are ready for operations and are comparatively less expensive too. The superior construction finish of these heaters also makes it possible for constructing heating panels of any size with heater length of up to 40 mm. Further, short wave infrared modules are advantageous to users while installing it to existing applications as well as for planning and project engineers.
Applications:
- Paint curing
- Powder coating
- Lacquers drying
- Printing ink
- Drying glaze on ceramic tiles
- Drying Gumming Sheets
- Drying Adhesive Tapes
- Latex Paper
- Textiles
- Car body works
Specifications :
- Heated Length lamps : 127-765
- Overall Dimensions(mm) : 310*80*55-975*80*55
- Power(Watts) : 500-3000
- Voltage : 240-415
Specifications
Overall Dimensions(mm) |
Lamp Specification |
Module Code |
Length |
Width |
Depth |
Lamp Used |
Heated Length |
Watts |
Volt |
500 |
310 |
80 |
55 |
500 |
127 |
500 |
240 |
1000 |
460 |
80 |
55 |
1000 |
254 |
1000 |
240 |
1600 S |
610 |
80 |
55 |
1600 S |
406 |
1600 |
240 |
1600 D |
610 |
80 |
55 |
1600 S |
406 |
1600 |
415 |
2000 S |
725 |
80 |
55 |
2000 S |
508 |
2000 |
240 |
2000 D |
725 |
80 |
55 |
2000 D |
508 |
2000 |
415 |
2500 D |
825 |
80 |
55 |
2500 D |
635 |
2500 |
415 |
3000 S |
725 |
80 |
55 |
3000 S |
508 |
3000 |
240 |
3000 D |
975 |
80 |
55 |
3000 D |
765 |
3000 |
415 |
Twin Tube Short Wave Infrared Module
Twin Tube Short Wave Infrared Module comprise 8-shaped, high-purity clear quartz twin tube where each of the tube has tungsten heating coils which run in U shape in tube. Some of the standard features of these heaters include heating and cooling time of approximately 50 seconds, system’s availability with gold reflectors and also without reflectors, outer rear side of the reflector tube coming in gold coated finish, power saving options by preventing heat loss from rear end through use of reflectors where prevention of heat loss also makes surrounding work area cooler as well as enhanced process efficiency and directionality of heaters.
Specifications :
- Cooling time : 50 seconds
- Shape available : Eight
- Tubes Material : Tungsten heating coils
- Tungsten heating coils shape : U
