Medium Wave Infrared Heaters
Medium Wave Infrared Heaters feature use of helically wound resistance coil which is housed in pure vitreous silica fused quartz tube. The ceramic insulating caps provided at end of quartz tubes are specially designed and fastened to tube using high temperature cement somas that allow tubes to breathe.
Application:
The Medium wave Infrared Heaters are used in
- Shrink Packaging Machines
- Drying Textiles
- Lamination Industries
- Rubber Curing
Specifications :
- Diameters : 8, 10, 12, 15 and 19 mm
- Length : 300 to 1500 mm
- Position : Horizontal
Medium Wave Infrared Heating Module
Medium Wave Infrared Heating Modules are the resistance wire enclosed in quartz tube of 8 mm outer diameter. The quartz tubes are mounted in special housing and are placed parallel to each other. These tubes replace ceramic heaters because of their compact size.
Applications:
- Thermoforming
- Plastic forming
- Shrink packaging Tunnels
- Laminating
- Rubber curing
- Textiles drying
- Drying lacquers and paints
Specifications :
- Power Rating : 250 to 100W,125 to 650W
- Width : 248mm-125mm
Specifications
Type Length |
Width |
Power Rating |
Full Length |
248mm |
250 to 100W |
Half Length |
125mm |
125 to 650W |

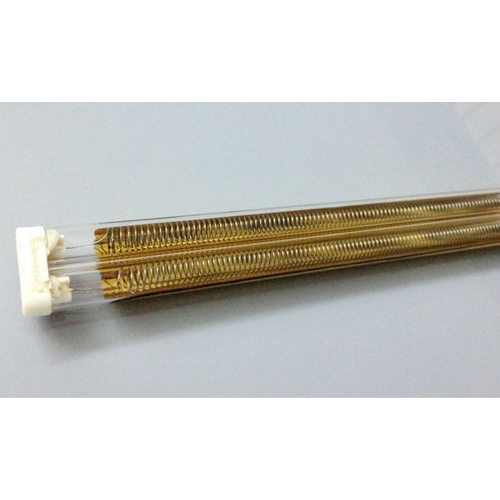

Twin Tube Medium Wave Infrared Heaters
Twin Tube Medium Wave Infrared Heater comprise of 8-shaped, high-purity clear quartz twin tube with each tube having Ni-Chrome heating coils which run in U shape in tube filled with halogen gas.
Features
- Heating & cooling time of approximately 1 second
- Available with and without gold reflectors
- Outer rear side of reflector tube being gold coated
- Power saving operations through prevention of heat loss from rear end by reflector
- Enhanced efficiency and directionality of heater
Available cross section sizes : 11x23 mm and 15x32 mm
Available Length : 2000 mm
Power density : 150 KW / m2
Specifications :
- Maximum length availability : 2000 mm
- Power density : 150 KW / m2
- Standard cross section size : 11 x 23 mm and 15 x 32 mm
