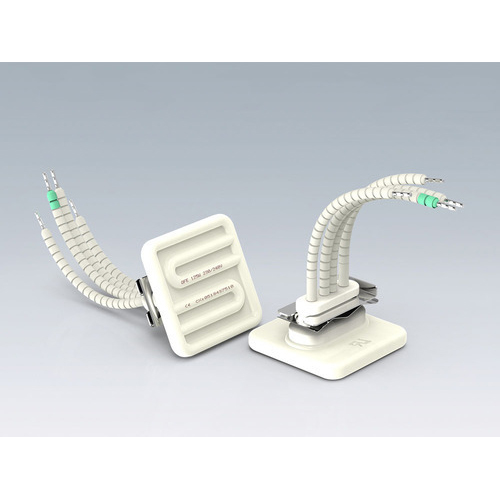

Insulated Ceramic Infrared Heaters

Insulated Ceramic Infrared Heaters come insulated at back portion with superior heat insulation material. This insulation helps in providing long service life despite being in regular use and also keeps internal part safe. These heaters can be made available with and without thermocouple with capability to deliver high temperatures of 900 degree Celsius with heating time of approximately 2 minutes.

The Insulated Ceramic Infrared Heaters allows easy achieving of high temperatures without any risk as insulation helps in minimizing heat loss as well as in decreasing temperatures near wires, thus making it an energy saving product.

Features:
Insulated Ceramic Heaters are available with the standard of

• High temperature of 900 degree Celsius
• Heating time of 2 minutes (approx.)
• Compact Size
• Easily installable

Application:

• Thermoforming
• PVC Paste Coating on Fabric
• Powder Coating
• Paint Baking
• Glass Tempering
• Printed Circuit Board Soldering

Specifications :

• Power(Watts) : 250W, 400W, 600W, 800W and 1000W
• Size : 122 mm x 122 mm, 245 mm x 60 mm and 120 mm x 60 mm
• High temperature : 900 degree Celsius
• Heating time : 2 minutes
• Power capacities : Up to 1000 W

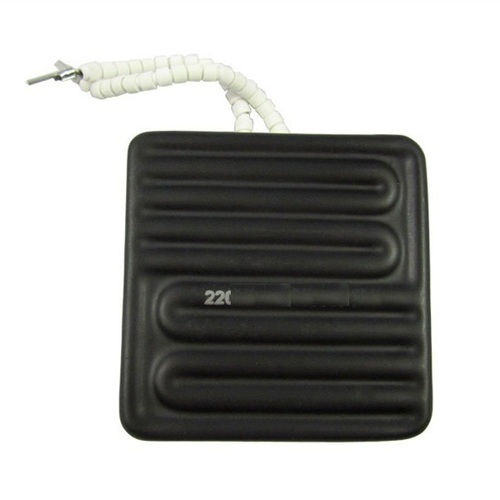

Super High Temperature Black Infrared Heaters increase maximum possible surface rating of ceramic panel radiators in range of 64 KW / m2 to 77 KW / m2. These radiators are manufactured using hollow casting ceramic process where these have special black gaze as well as gold-plated back with thermal insulation material filling.

With around 75% of electrical energy supplied being transferred to be heated as medium to long wave infrared radiation, these find high suitability in plant construction where special solutions are drawn up for meeting specific process requirements of the customers.

Available Power options : 300 W to 1200 W
Specifications :

• Power(Watts) : 300 W to 1200 W
• Range : 64 KW / m2 to 77 KW / m2.

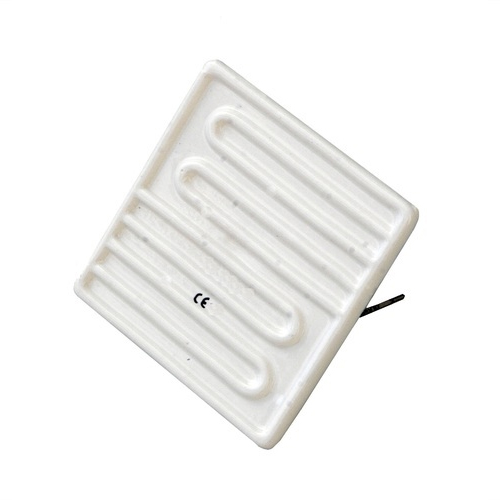

Thermocouple Ceramic Infrared Heaters are fitted with thermocouple that is made of Nickel and NiChrome (NiCr-Ni). The heater is fitted near heating coil and connected to temperature controllers for obtaining desired temperatures.

Advantages:

• Construction of temperature control system is very easy
• The operating temperature remains constant and is reached very quickly
• There is no impact of voltage fluctuation and air flow
• The temperature remains constant even in no-load operation

Specifications :

• Voltage : 220-240
• Material : Nickel and NiChrome (NiCr-Ni)

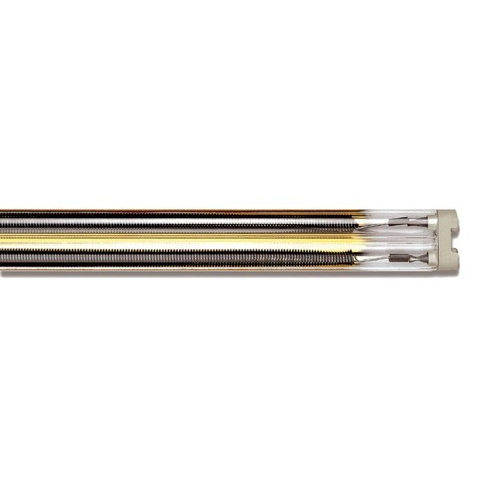

We are leading manufacturer and exporter of High Performance Infrared Heaters and our product is made up of good quality. High-performance Infrared Heaters offered comprise ceramic infrared rod radiators which are designed for usage in the surface rating of up to 87 KW / m2. These gold-plated ceramic parabolic reflectors allow transfer of 80% of the energy supplied as infrared radiation to the heating material. Further, it also allows the temperature of materials to reach to 700°C very quickly with reaching an operating temperature of 1000 degree in less than a minute. This makes this high-performance infrared heater used in plant construction where special solutions are drawn up for meeting customer's specific needs. Also being used in applications requiring very high output, these are available in two designs of 375 W / 115 V and 750 W / 230 V. It also allows temperature of materials to reach to 700°C very quickly with reaching operating temperature of 1000 degree in less than a minute.

Available specifications : 375 W / 115 V and 750 W / 230 V.

Specifications :

• Power(Watts) : 375 W-750 W
• Voltage : 115 V- 230 V
• Surface rating : 87 KW / m2
